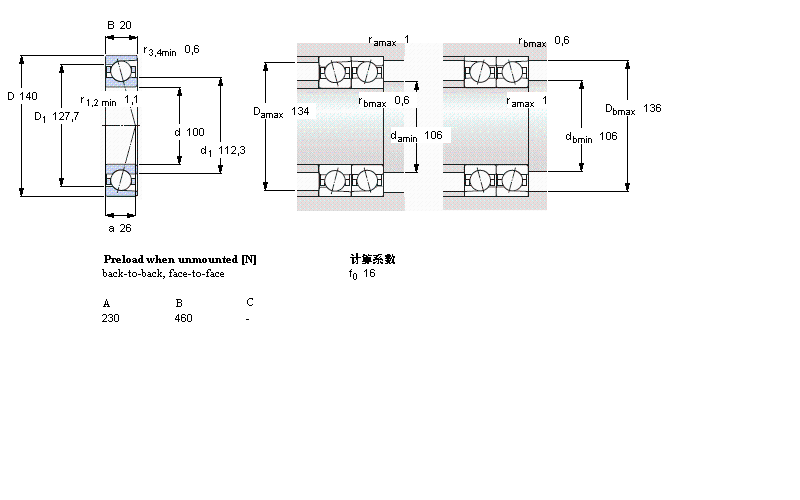

角接觸球軸承, 精密, CD/HC, contact angle 15°, hybrid | |||||||||||
公差 , see also text / text 718 (SEA) series | |||||||||||
預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
Recommended fits, shafts, housings | |||||||||||
軸和軸承座公差 | |||||||||||
![]() |
|||||||||||
主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
d | D | B | C | C0 | Pu | ||||||
![]() |
|||||||||||
mm | kN | kN | r/min | kg | - | ||||||
![]() |
|||||||||||
100 | 140 | 20 | 60,5 | 65,5 | 2,55 | 11000 | 17000 | 0,66 | 71920 CD/HCP4A | - |
