| 角接觸球軸承, 精密, CE/HC, contact angle 15°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||

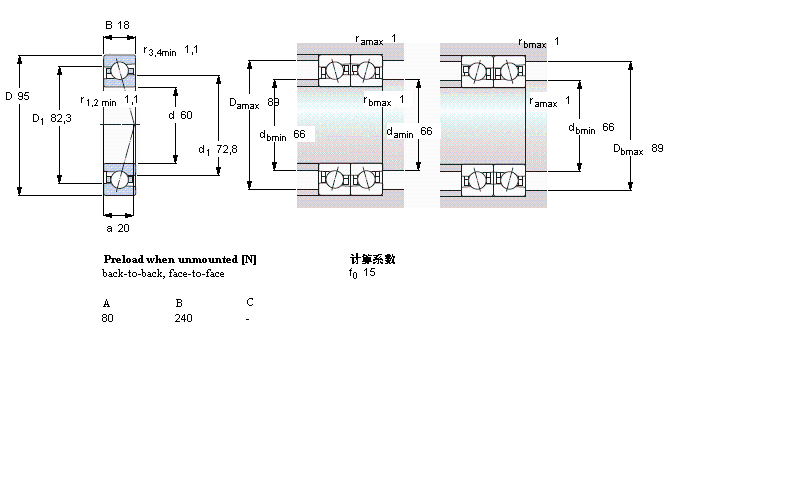

| 60 | 95 | 18 | 16,3 | 11,6 | 0,49 | 22000 | 36000 | 0,39 | 7012 CE/HCP4A | - | |
我公司特價供應以下型號產品： B7020-C-2RSD-T-P4S 主軸軸承 TAW6550Z 沖壓滾針軸承 CR18BUU 英制螺栓型滾輪滾針 CR8-1VBUUR 英制螺栓型滾輪滾針 61812-Z 深溝球軸承 N1010 圓柱滾子軸承 TAF-688235 滾針軸承 E33112J 圓錐滾子軸承 HS71920-E-T-P4S 主軸軸承
