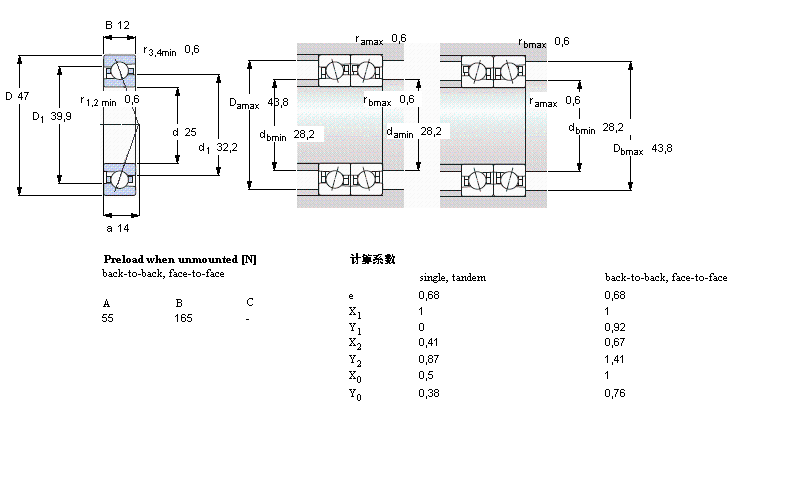

| 角接觸球軸承, 精密, ACE, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 47 | 12 | 7,41 | 3,55 | 0,15 | 38000 | 60000 | 0,073 | 7005 ACE/P4A | - | |
我公司特價供應以下型號產品： 7207BDB 角接觸球軸承 LRT26028560 滾針軸承內圈 LL352149/LL352110 單列圓錐滾子軸承 7303B 角接觸球軸承 656/654DC 雙外圈圓錐滾子軸承 6221-RZ 深溝球軸承 29476 推力滾子軸承 BCE85 閉式?jīng)_壓外圈滾針軸承 7320-B-TVP 角接觸球軸承
