| 聚合物球軸承,單列球軸承, POM/POM/glass/PA66 | ||||||||
|
||||||||
| 主要數據尺寸 | 負荷能力 | 額定速度 | 體積 | 型號 | ||||
| d | D | B | 動態 1) | 靜態 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||

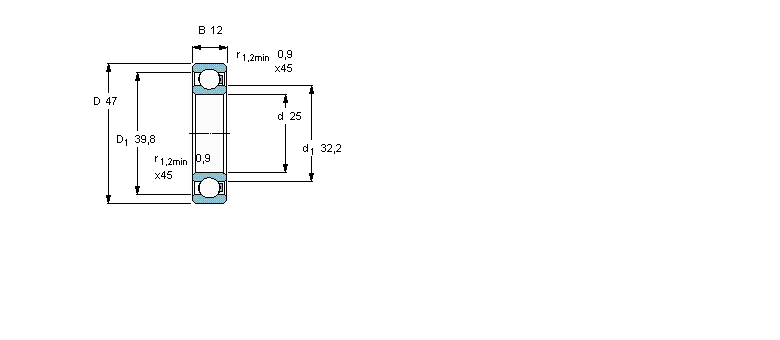

| 25 | 47 | 12 | 0,36 | 0,24 | 1050 | 0,024 | 6005/HR11QN | |
我公司特價供應以下型號產品： BC4B322498 圓柱滾子軸承 HCS7012-C-T-P4S 主軸軸承 MBL32 MB(L)鎖定墊圈 61913-ZN 深溝球軸承 PCJT2-3/16 軸承座單元 7217C/DT 角接觸球軸承 6308-2RS 深溝球軸承 23236RK+H2336 球面滾子軸承 2308K+H2308 調心球軸承
